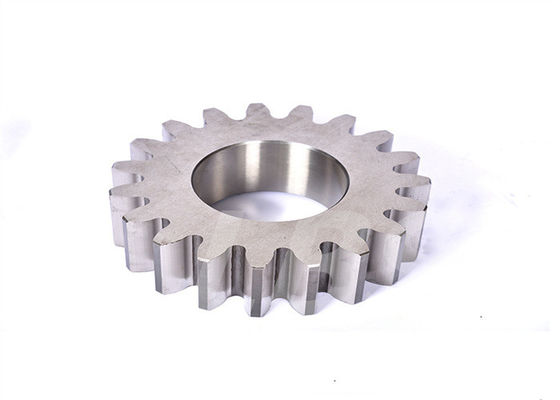

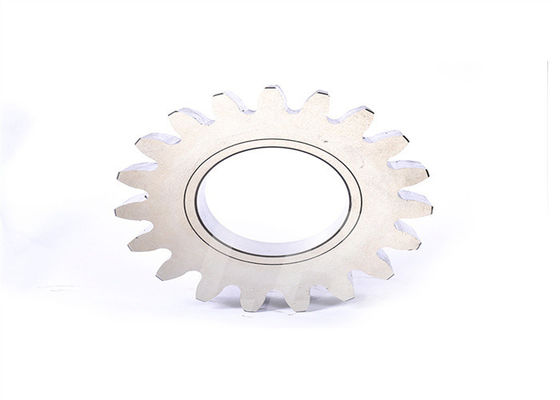

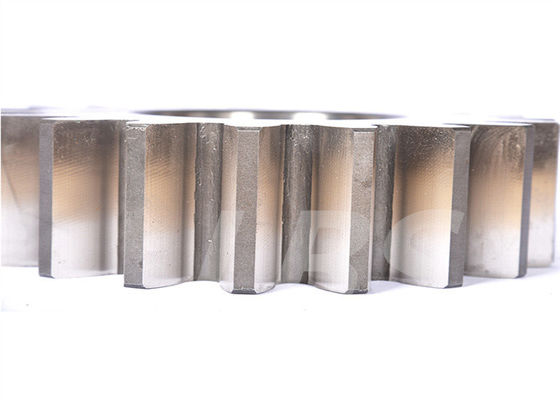

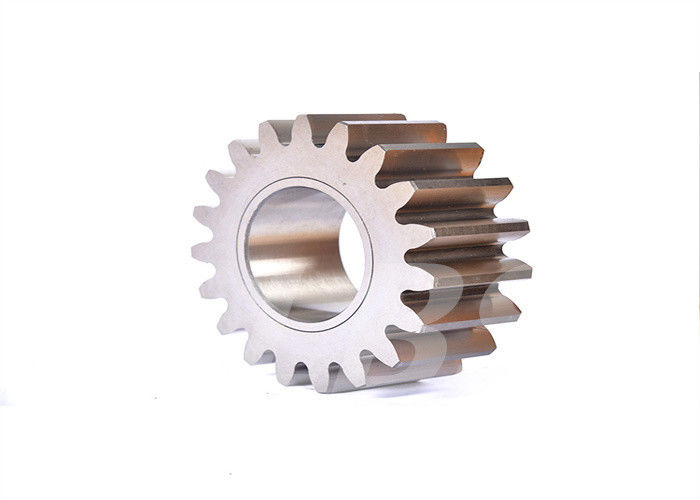

OEM Service SS304 Metal Gear Wheel 65Class For Belt Reducing Box
Overview
Gear is a mechanical part with teeth that can mesh with each other. It is widely used in mechanical transmission and the whole mechanical field. Modern gear technology has reached: gear modulus 0.004 ~ 100 mm; Gear diameter from 1 mm to 150 meters; Transmission power up to 100,000 kilowatts; Speed up to hundreds of thousands of RPM; The highest circumferential speed is 300 m/s.
Description
| Model | Metal Gear Whee |
| Type | Round/Worm gear/bevel/Non-round /Rac Plastic stainless steel |
| Tooth shape | spur/bevel/curve/double gear |
| Production type | Casting/cutting/rolling/sintered gear |
| Wrapped | wooden box |
Application scope
| textile, agriculture, mining, food, oil and other transmission machinery |
| Hardness | hardening |
| MOQ | ≥100 pieces |
product introduce
| Name | Large Module Metal Gear Wheel For Belt Reducing Box Of Belt Reducing Machine |
| Machining module | 0.2-10 |
| Materials: | stee45#l, 40CR, Easy car iron (1214#), brass, tin bronze, POM(Sisteel), PVD, PVDFl, imported nylon, stainless steel 303#, stainless steel 304#, aluminum 606#, aluminum 6063# |
Surface treatment: blackening, | high frequency, carburizing and quenching, surface nitriding, etc |
| Processing equipment: | CNC lathes, automatic lathes, general lathes, hobbing machine, gear shaper, gear milling machine, shaving machine, milling machine, grinding machine, wire cutting, etc |
| Processing technology | hobbing, gear, shaving, milling teeth |
| | |
Common spur gear specifications
Common spur gear specifications |
| Modulus | 1M | 1.5M | 2M | 2.5M | 3M | 4M | 5M |
| tooth thickness | 10mm | 15-18mm | 20mm | 25mm | 30mm | 35-40mm | 40-50mm |
| inner hole | The blank hole |
| setting method | Outer diameter = module * (Number of teeth -2) |
Some technical terms
Tooth width b -- Axial dimension of tooth.
Face pressure Angle ɑ T -- Acute Angle between the radial line of the intersection of the tooth profile and the indexing circle and the tangent line of the tooth profile passing this point.
Standard Rack: a Rack that has the dimensions of the base circle, tooth profile, full tooth height, crown height, and tooth thickness to meet Standard spur gear specifications. A Rack that has been cut to Standard gear specifications is called a Standard Rack.
Standard Pitch Circle: the Standard Pitch Circle used to determine the dimensions of gears. Is the number of teeth x modulus
Standard Pitch Line: the tooth thickness measured at or along a specific Pitch Line on a rack, 1/2 Pitch.
Action Pitch Circle: when a pair of spur gears bite, each one is tangent to the rolling Circle.
Standard Pitch: if the selected Standard Pitch is used as the base Pitch, it is equal to the base rack Pitch.
Pitch Circle: the track left on the contact point of each gear at the center line of two gears is called Pitch Circle.
Pitch Diameter: Pitch circle Diameter.
Effective Working Depth: a pair of spur gear crown height and. Also known as working tooth height.
Addendum: Difference in radius between the Addendum circle and the node circle.
Backlash: The gap between the tooth surface and the tooth surface when two teeth are occluded.
Clearance: The Clearance between the top of one gear and the bottom of the other when two teeth fit.
Pitch Point: the Point at which a pair of gears bite and are tangent to the Pitch circle.
Pitch: the distance between two adjacent teeth of corresponding point arc.
Normal Pitch: Pitch measured by the same vertical line along a specific section of involute gear.
Transmission ratio : the ratio of the rotational speed of two meshing gears. The rotational speed of the gear is inversely proportional to the number of teeth. Generally, N1 and N2 represent the rotational speed of two meshing teeth
FAQ:
Q1.Are you a factory or a trading company?What can you provide?
We are a factory locates in industrial belt of Shijiazhuang City,our main products are hydraulic orbit motors,hydraulic winches, hydraulic brakes, hydraulic stee hole punchers, hydraulic steerings, etc.
Q2. I want to buy your product,how can I pay?
We support T/T,Paypal, Western Union,also you can pay through Alibaba trade assurance
Q3.How about the warranty?
We promise to supply high quality products and professional after-sales service.We can supply technical support as long as you need,beyond that, we also offer six months of warranty.
Q4.If we don't find what we want on your website, what should we do?
You can start a conversation to us or send us email about the descriptions and pictures of the products you need, We will check if we can supply.
Q5.Can we buy 1pc of each item for quality testing?
Yes, we understand quality test is important and we are glad to send 1pc for quality testing
