Multilayer Grooved Drum Electric Cable Pulling Winch Hydraulic System

Multilayer Grooved Drum Electric Cable Pulling Winch Hydraulic System
Multilayer Grooved Drum Electric Cable Pulling Winch Hydraulic System Multilayer Grooved Drum Electric Cable Pulling Winch Hydraulic System Multilayer Grooved Drum Electric Cable Pulling Winch Hydraulic System

Large Image :  Multilayer Grooved Drum Electric Cable Pulling Winch Hydraulic System

Product Details:
Place of Origin: Shijiazhuang ,Hebei ,China
Brand Name: LBS
Certification: ccs
Model Number: CUSTOMIZABLE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Pieces Per Month
Detailed Product Description
Full Name: BMU Electric Winch Material: Alloy Steel Or Stainless Steel
Color: Customizable Grooving Type: LBS Grooving Or Helical Grooving
Surface Hardness: As Your Requirement Use: Window Cleaning Equipment
Rope Diameter: 6mm/8mm TheRope Capacity: 80m-220m
High Light:

Multilayer Drum Electric Cable Pulling winch

,

Grooved Drum Electric Cable Pulling Winch

,

Multilayer Drum winch hydraulic system

Multilayer Wire Rope Winding Grooved Drum For Electric Cable Pulling Winch





Introduction to pulling winch

The pulling winch consists of several parts, which are connected in series by wire rope. The working principle is to drive the whole system by the friction between the friction wheel and the wire rope, and the friction wheel is connected with the drive device. Generally, the width of the winch is within 1.5 m, which ensures the compactness and reliability of the entire transport unit. The traction winch is provided with tensioning device



product equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.



Breif introduction

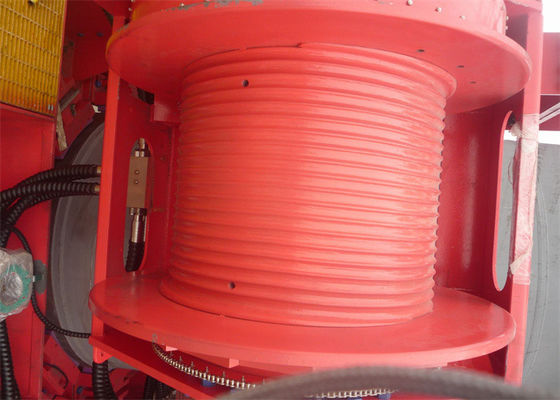

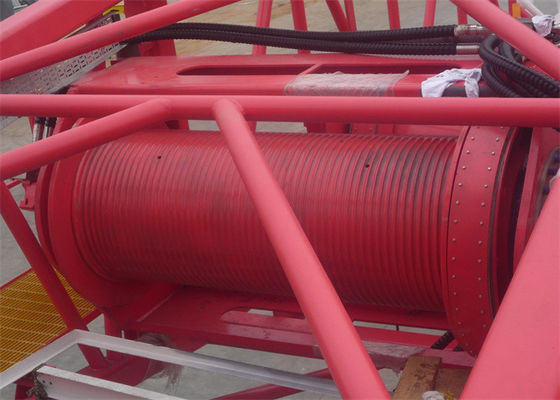

We also supply LBS grooved drum used in all kinds of winchs. The whole drum details as follows:

1. the groove is cut directly into the body of drum.

2. according to the customer' requirements, the flanges are either welded or screw-bolted.

3. the groove is available as either LBS-groove or helical-groove.

4. groove geometry is determined by rope construction, diameter and length ,and by application.

5. the drum is provided with the requested mounting dimensions to fit the flanges by welding or screw bolting.



Other products

Sleeves are used to prevent damage to a drum. It is usually cheaper to replace a worn out sleeve in stead of replacing or repair the complete drum assembly.

The LBS split-sleeve system consists of a pair of outer shells that are bolted or welded onto a smooth drum to provide a grooving pattern. either LBS parallel grooves can be carved into sleeves. As with all LBS drums, the grooving in split sleeves is engineer to much the specific rope construction, diameter and length, and to suit
We can design the LBS sleeve according to the drum's size and parameter.So the customer need to provide some paramter as follows:


Winch Drum parameter

the drum's outer diameter LBS sleeves diameter
width between the flanges 320mm 550mm or as your requirement
the rotation direction left or right
wire rope diameter and structure 22mm 33mm or any others
the material Q345B or high strength steel
the surface hardness as your requirements


Multilayer Grooved Drum Electric Cable Pulling Winch Hydraulic System 0Multilayer Grooved Drum Electric Cable Pulling Winch Hydraulic System 1





Multilayer Grooved Drum Electric Cable Pulling Winch Hydraulic System 2

Multilayer Grooved Drum Electric Cable Pulling Winch Hydraulic System 3



Multilayer Grooved Drum Electric Cable Pulling Winch Hydraulic System 4
