Alloy Four Grooved Drums 800m Wire High Capacity For Marine Slipway Winch

China Hebei Junke Machinery Technology Co.,Ltd certification
China Hebei Junke Machinery Technology Co.,Ltd certification
The company has a very mature technology, product quality is impeccable, the details of the deal well, look forward to the next cooperation.

—— Earlina Adamson

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

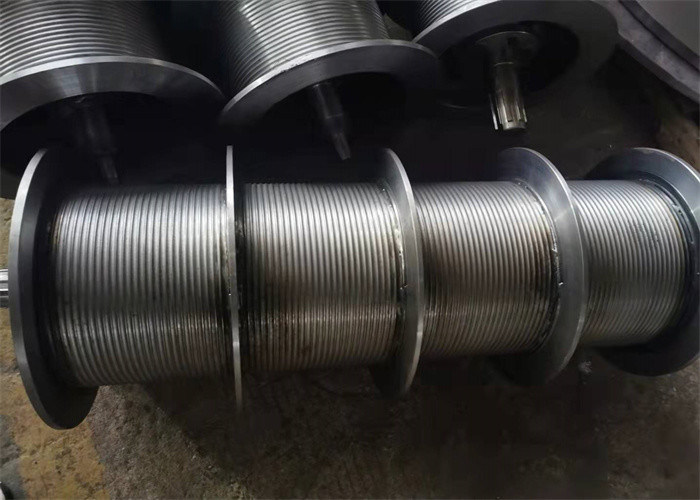

Alloy Four Grooved Drums 800m Wire High Capacity For Marine Slipway Winch

Alloy Four Grooved Drums 800m Wire High Capacity For Marine Slipway Winch
Alloy Four Grooved Drums 800m Wire High Capacity For Marine Slipway Winch Alloy Four Grooved Drums 800m Wire High Capacity For Marine Slipway Winch Alloy Four Grooved Drums 800m Wire High Capacity For Marine Slipway Winch

Large Image :  Alloy Four Grooved Drums 800m Wire High Capacity For Marine Slipway Winch

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS, ABS
Model Number: customizable
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 30 to 40 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: Marine Slipway Winch Drum Quantity: Double Or Four
Drum Design: LBS Groove Or Spiral Groove Material: Carbon Stainless And Alloy Steels
Size: Customization Application Range: Shipyard Oil Mining
Power Source: Hydraulic Capacity: 500kn
High Light:

Alloy Four Grooved Drums

,

800m wire Grooved Drums

,

800m steel cable drum

Customizable Alloy material Four Grooved Drums For Marine Slipway Winch





Marine Slipway Winch​ description:

Slipway winch is designed to move boats to and from the water by the slipway. It is widely used when the boats or vessels need to be carried out for repair or maintenance.

This type of winch is also ideal for launching and retrieving ships and boats.

Our winch for slipway comes in a variety of options: electric and hydraulic slipway winch, single drum and friction type winch.

We also provide the necessary accessories to pull the boat through the slipway: airbags, moving and fixed pulleys, guide wheels, etc.



Types of slipway winches:

Electric slipway winch
Hydraulic slipway winch
Friction type slipway winch
Single drum slipway winch



Techinical parameters:
Technical Parameters of LBS-J Slow Speed Electric Winch
Model Rated Rated Rope Rope Motor Motor Overall Overall
load speed capacity diameter type power Dimensions weight
  KN m/min m mm   KW mm KG
LBS-J1 10 15 100 9.3 Y112M-6 3 620x701x417 270
LBS-J1.6 16 16 150 12.5 Y132M-6 5.5 945x996x570 500
LBS-J2 20 16 150 13 Y160M-6 7.5 945x996x570 550
LBS-J3.2 32 9.5 150 15.5 YZR160M-6 7.5 1430x1160x910 1100
LBS-J3.2B 32 12 195 15.5 YZR160M-6 7.5 1082x1014x610 536
LBS-J5 50 10 270 21.5 YZR160L-6 11 1235x1230x805 1560
LBS-J5B 50 9.5 200 21.5 YZR160L-6 11 1620x1260x945 1800
LBS-J5C 50 9.5 250 21.5 YZR160L-6 11 1235x1230x805 1800
LBS-J5D 50 15 250 21.5 YZR180L-6 15 1235x1230x805 1850
LBS-J5E 50 20 250 21.5 YZR200L-6 22 1235x1230x805 2000
LBS-J6 60 9.5 270 24 YZR180L-6 15 1235x1509x805 1800
LBS-J8 80 8 250 26 YZR180L-6 15 2090x1475x956 2900
LBS-J8B 80 9.5 350 26 YZR180L-6 15 1075x1598x985 2650
LBS-J10 100 8 170 30 YZR200L-6 22 2090x1475x956 3000
LBS-J10B 100 9.5 250 30 YZR200L-6 22 1705x2200x985 3500
LBS-J12.5 125 8 300 34 YZR225M-6 30 2880x2200x1550 5000
LBS-J13.5 135 0-5 290 28 YZR225S-8 22 2990x2363x1650 6500
LBS-J16 160 10 500 37 YZR250M2-8 37 3750x2400x1850 8800
LBS-J20 200 10 600 43 YZR280S-8 45 3950x2560x1950 9900
LBS-J25 225 9 700 48 YZR280M-8 55 4350x2800x2030 13500
LBS-J32 320 9 700 56 YZR135S-8 75 4500x2850x2100 14800
JM50 500 9 800 65 YZR315M-8 90 4930x3050x2250 19500
JM65 650 10.5 3600 64 LA8315-8AB 160 5900x4680x3200 46000



Technical Parameters of LBS-Z High-Speed Electric Winch
Model Rated Rated Rope Rope Motor Motor Overall Overall
load speed capacity diameter type power Dimensions weight
  KN m/min m mm   KW mm KG
LBS-Z0.5 5 22 190 7.7 Y100L-4 3 620x701x417 200
LBS-Z1 10 22 100 9.3 Y112M-4 4 620x701x417 300
LBS-Z1.6 16 24 150 12.5 Y132S-4 5.5 945x996x570 500
LBS-Z2 20 24 150 13 Y132M-4 7.5 945x996x570 550
LBS-Z3.2 32 25 290 15.5 YZR180L-6 15 1325x1335x840 1011
LBS-Z3.2B 32 30 250 15.5 YZR200L-6 22 1900x1738x985 1500
LBS-Z5 50 30 300 21.5 YZR225M-6 30 1900x1620x985 2050
LBS-Z5B 50 25 210 21.5 YZR225M-8 22 2250x2250x1300 2264
LBS-Z8 80 25 160 26 YZR280S-8 45 1533x1985x1045 3000
LBS-Z10 100 30 300 30 YZR315S-8 55 2250x2500x1300 5100



Technical Parameters of LBS-ZD Electric Planetary Winch
Model Rated load Rope capacity Rope diameter Motor power Overall Dimensions Overall weight
KN m mm KW mm KG
LBS-ZD0.75 7.5 100 9.3 3 900x340x400 165
LBS-ZD1.25 12.5 120 11 7.5 1140x400x450 315
LBS-ZD1.60 16 160 12.5 7.5 1200x400x480 350
LBS-ZD2.0 20 190 13 13 1400x470x548 510



Drum features:

  1. Compact Design
  2. Easy Maintenance
  3. Long Service Life
  4. Professional Knowledge
  5. High Efficiency
  6. Full Experience
  7. Advanced Technology
  8. Reasonable Price


The winch in the mining area must meet the following requirements:
1) Can adapt to the downhole operating environment. In mining areas with combustible and explosive gases such as gas underground, winch and electrical control equipment with explosion-proof performance must be used, in accordance with the relevant requirements of coal Mine Safety Regulations.

2) The lifting capacity shall meet the task requirements of transporting coal, gangue, materials, equipment and personnel in the mining area where the winch is located.

3) In one lift, the lifting load, safety factor of wire rope and safety factor of mechanical strength shall meet the specified requirements. No overload operation, no underload operation.

4) The depth indicator can be accurately and clearly indicated within the range of lifting stroke. The actual stroke of the pointer shall not exceed the range specified by the depth indicator, nor shall it be excessively shortened. In general, the actual stroke of the pointer should be between 1/2 and 2/3 of the rated stroke of the depth indicator, which is convenient for the hoist operator to observe clearly and improve the accuracy and reliability of operation.

5) It can meet the requirement of emergency braking in case of sudden accidents.

6) Can meet the "coal mine safety regulations" related to the lifting device requirements.

6. Main lifting device: The definition of main lifting device in Coal Mine Safety Regulations is: hoisting machine containing hoisting machine and hoisting machine with hoisting material with diameter of more than 2m. The hoist involved in this course and the main content is the drum diameter of 2m and 2m is only used for lifting materials hoist.


About us:

Shijiazhuang Jun Zhong Machinery Maufacturing Co.,Ltd has been certified as “High & New-tech Enterprises of Hebei Province”, “benchmark enterprises”, “Well-known Trademark of China”, “Famous Trademark of Hebei Province”, and it has achieved many patents of state level and National Torch Plan Projects.

Alloy Four Grooved Drums 800m Wire High Capacity For Marine Slipway Winch 0Alloy Four Grooved Drums 800m Wire High Capacity For Marine Slipway Winch 1

Alloy Four Grooved Drums 800m Wire High Capacity For Marine Slipway Winch 2Alloy Four Grooved Drums 800m Wire High Capacity For Marine Slipway Winch 3Alloy Four Grooved Drums 800m Wire High Capacity For Marine Slipway Winch 4
