10T Winch With Spooling Device

China Hebei Junke Machinery Technology Co.,Ltd certification
China Hebei Junke Machinery Technology Co.,Ltd certification
The company has a very mature technology, product quality is impeccable, the details of the deal well, look forward to the next cooperation.

—— Earlina Adamson

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

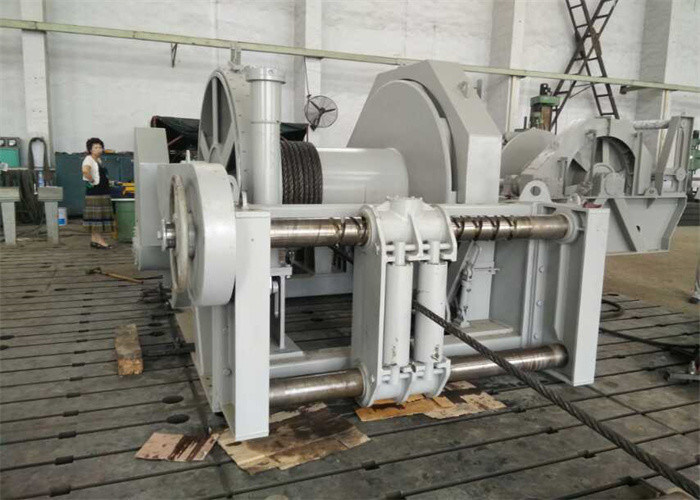

10T Winch With Spooling Device

10T Winch With Spooling Device
10T Winch With Spooling Device 10T Winch With Spooling Device 10T Winch With Spooling Device

Large Image :  10T Winch With Spooling Device

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: Custom-Made
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Steel Pallet
Delivery Time: General order 30-50 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Pieces Per Month
Detailed Product Description
Product Name: Winch With Spooling Device Capacity: 10T
Application: Ship Or Others Power Source: Electric
Material: Steel Q355D Supply Ability: 200 Sets Per Month
High Light:

10T Winch With Spooling Device

,

LBS Winch With Spooling Device

Safe And Reliable LBS Grooved Drum Winch With Spooling Device For Ship





Winch Spooling

A kind of application on the winch cable system, including the manipulation of the platform, with the cable drum, signal transmission device, tension device, and is used for configuration cable on the reel cable device, its characteristics is described in the drum by gear and at the end of the signal transmission device connected to the signal transmission device connected by a thick shaft encoder, encoder described through the transmission lines connected to the manipulation of the platform, The cable arrangement device relative is arranged with two bearings, one of the lateral support is arranged with a coupling and reducer, the reducer is arranged above the frequency conversion motor, frequency conversion motor is connected with the control platform through cable, the other lateral support is connected with the tension device through the sprocket; The guide shaft and lead screw are arranged between the two supports, and the guide shaft and lead screw are movably connected with a reciprocating sliding seat, and the reciprocating sliding seat is provided with a wire window through the cable.



Spooling device:

1. The rope winding device of the winch (spooling device winch) adopts the principle of double rotating screw to drive the rope wheel to move back and forth,It is mechanical transmission device, easy to use, safe and reliable.
2. The winch rope arranging device consists of six parts, namely, power output part, transmission box, clutch, spiral sleeve part, rope supporting part and base.
3. In the installation process, does not require any part of the transformation of the winch, only needs to install the outer gear on the winch motor side, the power of the motor output.



Product Structure

Groove Drum Composition: Drum core, Flanges, Shaft, Etc

Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.



Product Features:

1. Steel Wire rope electric winch with spooling system
2. Automatic rope arrangement can be realized
3. Compact structure and reasonable design
4. Keep the wire rope's tensioning tight for winches & cranes
5. The spooling machine can supply a back force on the rope to keep the rope a tensioning force.The spooling machine and its HPU are removeable


Product Application

1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch

2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch

3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc

4. The building machinery: Building wipe wall winch, Winding hoist, Windlass

5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc

6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch

The LeBus system is a method of controlling the spooling of wire rope on a winch drum so that there is no practical limit to the number of layers that can be spooled with safety, irrespective of the severity of load and speed conditions or the sizes of rope and drum.



Drive principle:

Winch drum - gear box - screw sleeve rotation - rope wheel reciprocating movement.


Company introduction

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,

In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.







Product name

Safe And Reliable LBS Grooved Drum Winch With Spooling Device For Ship

Drum Quantity

Single Or Double

Drum Design

LBS Groove Or Spiral Groove

Material

Carbon Stainless And Alloy Steels

Size

Customization

Application Range

Construction Mining Terminal operation

Power Source

Electric and hydraulic

Rope Capacity

100~300M










 10T Winch With Spooling Device 0



10T Winch With Spooling Device 1



10T Winch With Spooling Device 210T Winch With Spooling Device 310T Winch With Spooling Device 4
