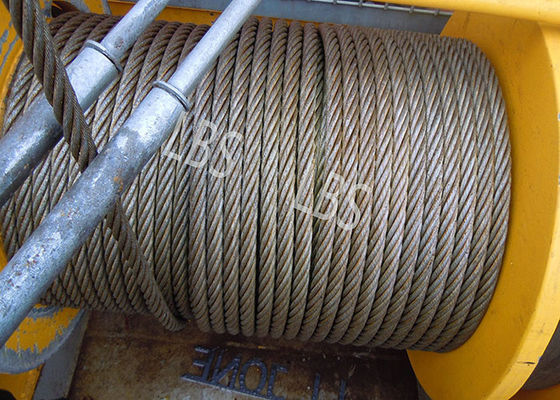

Electric Winch Machine 5 Ton Alloy Steel Yellow With Grooved Drum

Electric Winch Machine 5 Ton Alloy Steel Yellow With Grooved Drum
Electric Winch Machine 5 Ton Alloy Steel Yellow With Grooved Drum Electric Winch Machine 5 Ton Alloy Steel Yellow With Grooved Drum Electric Winch Machine 5 Ton Alloy Steel Yellow With Grooved Drum Electric Winch Machine 5 Ton Alloy Steel Yellow With Grooved Drum

Large Image :  Electric Winch Machine 5 Ton Alloy Steel Yellow With Grooved Drum

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSW-E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 30 to 40 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 500 Pieces/Sets Per Month
Detailed Product Description
Product Name: Electric Power Winch Material: Alloy Steel
MOQ: I Set Produce Equipment: CNC Center
Material Standard: GB, AISI, ASME Application Range: Helicopter
Hoist Speed: 0.95-1.27m/s Rotate Speed: 720-960 R/min
Rope Diameter: 3-30mm Direction Rotation: Left Or Right
Highlight:

Grooved electric winch machine 5 ton

,

Alloy Steel electric winch machine 5 ton

,

Grooved Drum 5 ton winch machine

Helicopter electric rope winch Alloy Steel Lebus Grooved Drum





Helicopter electric winch overview

The electric winch is one of the important optional equipment of the helicopter. The electric winch can carry out lifesaving and lift the wounded or personnel from the ground to the helicopter cabin in the hovering state of the helicopter. In the hovering state of the helicopter, lift the refueling tube, helicopter hovering refueling, reduce the helicopter refueling time, that is, reduce the preparation time of flight tasks; Hang the cable on the hook of the winch, rope down the personnel, so that the personnel quickly descend to the ground to perform the task; Lifting and transporting light cargo; Aerial lifting personnel to carry out aerial work. With the continuous progress and development of helicopter technology, electric winch technology is also constantly improving, and playing an irreplaceable role in more and more fields.



 winch function

The main function of winch will be given a brief introduction to rotorcraft. Because the winch is widely used in rotorcraft, and in fixed-wing aircraft is only used in large cargo aircraft. A winch is used on a fixed-wing aircraft to lift or pull cargo into the hold.

The functions of the winch on the rotor are mainly as follows:

1) When the helicopter is hovering, rescue personnel, lift the wounded or personnel from the ground to the helicopter cabin;

2) In the hovering state of the helicopter, lift the refueling tube to carry out the hovering refueling, reducing the refueling time of the helicopter, that is, reducing the preparation time of the flight mission;

3) Hang the cable on the hook of the winch, and rope down the personnel, so that the personnel quickly descend to the ground to perform the task;

4) Lifting and transporting light cargo;

5) Aerial lifting personnel shall carry out aerial operations.



The structural characteristics of electric winch

Each electric winch is composed of drive system, cable winding system, electrical control system, hook and other components. Drive system includes motor, reducer and other components. The wire rope winding system consists of wire rope, wire drum and other parts. Electrical control system includes control handle, control box, stroke control switch and other parts.





Product introduce :



Name mining electric hoisting winch
other name: mine winch/oil drilling winch
Hoist speed 0.95-1.27m/s
Rotate speed 720-960 r/min
Rope diameter 3-30mm
Sling type wire
Direction rotation left or right
Application hoist
Parameter can be designed
Application mining,oil drilling,or coal mine
Drum diameter 900mm
Drum width 600mm





Application:

The Electric Power Winch of this series are used to lift materials, equipments and people in coal mine, iron mine, metal mine and non metal mine inclined roadway and small shaft.





Working Principle:

The motor transmits power to the winding drum wrapped by wire rope through the reducer to lift and lower the container, reduce the speed through electric drive. Disk break is controlled by hydraulic pressure and electric; Position indicator system shows the depth of the container; the control system integrating the motor, electric and hydraulic pressure supervises and protects the whole equipment through a variety of sensors and control elements; Internal and external information transmission is carried out by the computer and the internet technology.



Service content:

A: Pre-sales Service

1. Provide technical advisory services to assist customer in selection;
2. Provide customers with the necessary technical information, drawings, etc;

B: Sales Service

1. According to the relevant technical parameters, design drawings, or to provide customers with drawings of professional review, to provide the best solution and drawings.

2. Answers questions about specifications, performance, parameters, etc, and recommend the most appropriate solution.

3. Immediately after signing the contract, we make production planning for timely delivery.

C: After-sales Service

1. Provide technical advice during installation process;

2. In warranty period, if a quality-related problem occurs in normal use, please send a written description of the problem to us. We will respond within 24-48 hours.

3. Even if the warranty has expired, we are still glad to solve problems that are not due to improper use for you. All repairs will be billed at cost, and for long term, we supply spare parts at favorable price.





Electric Winch Machine 5 Ton Alloy Steel Yellow With Grooved Drum 0Electric Winch Machine 5 Ton Alloy Steel Yellow With Grooved Drum 1Electric Winch Machine 5 Ton Alloy Steel Yellow With Grooved Drum 2Electric Winch Machine 5 Ton Alloy Steel Yellow With Grooved Drum 3
