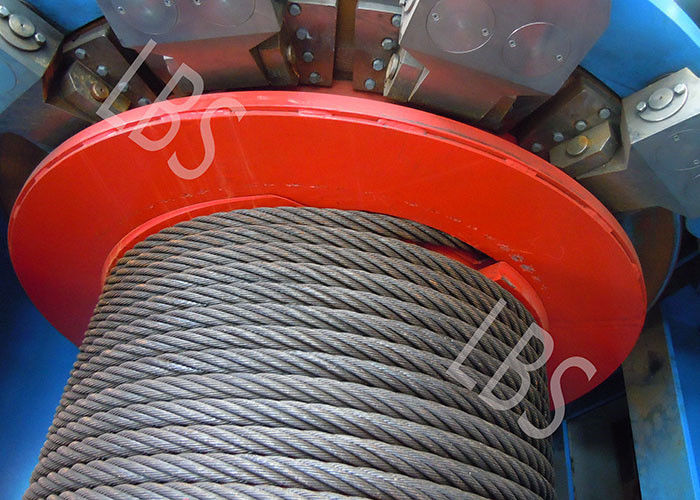

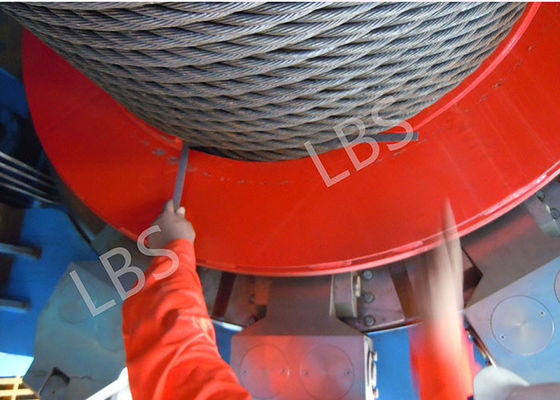

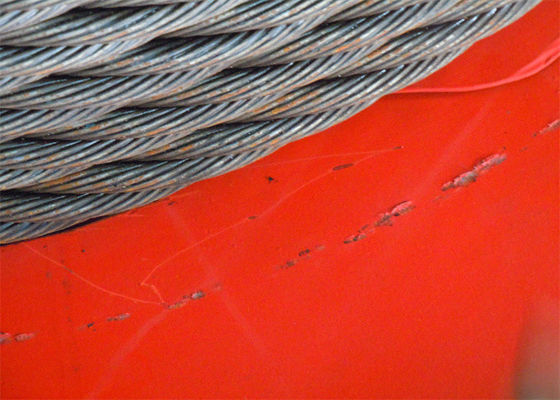

600mm Width 960r/Min Electric Rope Winch , Electric Cable Pulling Winch

600mm Width 960r/Min Electric Rope Winch , Electric Cable Pulling Winch
600mm Width 960r/Min Electric Rope Winch , Electric Cable Pulling Winch 600mm Width 960r/Min Electric Rope Winch , Electric Cable Pulling Winch 600mm Width 960r/Min Electric Rope Winch , Electric Cable Pulling Winch

Large Image :  600mm Width 960r/Min Electric Rope Winch , Electric Cable Pulling Winch

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSW-E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 30 to 40 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 500 Pieces/Sets Per Month
Detailed Product Description
Product Name: Electric Rope Pulling Winch L Material: Steel
Small Order: Accepeted Produce Equipment: CNC Center
Material Standard: GB, AISI, ASME Application Range: Shipyard Oil Mining
Hoist Speed: 0.95-1.27m/s Rotate Speed: 720-960 R/min
Rope Diameter: 2-30mm Direction Rotation: Left Or Right
Highlight:

960r/min Electric Rope Winch

,

600mm Electric Rope Winch

,

600mm electric cable pulling winch

Non-Standard Steel Electric Rope Pulling Winch Lebus Grooved Drums





Product introduce :



Name Non-standard steel electric rope pulling winch Lebus Grooved drums
other name: mine winch/oil drilling winch
Hoist speed 0.95-1.27m/s
Rotate speed 720-960 r/min
Rope diameter 3-30mm
Sling type wire
Direction rotation left or right
Application hoist
Parameter can be designed
Application mining,oil drilling,or coal mine
Drum diameter 900mm
Drum width 600mm



Principle Of the Electric Rope Winch

The electric winch works by converting electrical energy into mechanical energy through the motor, that is, the rotor of the motor outputs rotation and drives the drum to rotate after the triangle belt, shaft and gear deceleration.

It is used for electric hoist with large lifting height, large loading and unloading capacity and cumbersome working conditions. It is required to have good speed regulation performance, especially the empty hook can drop quickly. For mounting or sensitive materials, it should be able to descend with a slight speed of movement.

The electric winch uses an electric motor as the power, drives the drum through an elastic coupling, a three-stage enclosed gear reducer, and uses an electromagnetic system.



Advantages of electric rope winch

Electric winch has strong versatility, compact structure, small size, light weight, heavy lifting, easy to use and transfer. Widely used in construction, water conservancy engineering, forestry, mining, wharf and other materials hoisting or leveling, can also be used in modern electrical control automatic operation line supporting equipment.



The structural characteristics of electric winch

Each electric winch is composed of drive system, cable winding system, electrical control system, hook and other components. Drive system includes motor, reducer and other components. The wire rope winding system consists of wire rope, wire drum and other parts. Electrical control system includes control handle, control box, stroke control switch and other parts.





600mm Width 960r/Min Electric Rope Winch , Electric Cable Pulling Winch 0600mm Width 960r/Min Electric Rope Winch , Electric Cable Pulling Winch 1600mm Width 960r/Min Electric Rope Winch , Electric Cable Pulling Winch 2600mm Width 960r/Min Electric Rope Winch , Electric Cable Pulling Winch 3600mm Width 960r/Min Electric Rope Winch , Electric Cable Pulling Winch 4600mm Width 960r/Min Electric Rope Winch , Electric Cable Pulling Winch 5600mm Width 960r/Min Electric Rope Winch , Electric Cable Pulling Winch 6600mm Width 960r/Min Electric Rope Winch , Electric Cable Pulling Winch 7
