Steel Q235 Construction Winch Machine 5 Ton Red For Coal Mine

Steel Q235 Construction Winch Machine 5 Ton Red For Coal Mine
Steel Q235 Construction Winch Machine 5 Ton Red For Coal Mine Steel Q235 Construction Winch Machine 5 Ton Red For Coal Mine

Large Image :  Steel Q235 Construction Winch Machine 5 Ton Red For Coal Mine

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSW-E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 30 to 40 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 500 Pieces/Sets Per Month
Detailed Product Description
Product Name: Electric Wrie Rope Winch Lebus Grooved Drums Material: Steel Q235
Small Order: Accepeted Produce Equipment: CNC Center
Material Standard: GB, AISI, ASME Application Range: Shipyard Oil Mining
Hoist Speed: 0.95-1.27m/s Rotate Speed: 720-960 R/min
Rope Diameter: 3-30mm Direction Rotation: Left Or Right
High Light:

Steel Q235 construction winch machine

,

5 Ton construction winch machine

,

Steel Q235 winch machine 5 ton

Mining And Construction Equipment Electric Wrie Rope Winch Lebus Grooved Drums





Product introduce :



Name Mining And Construction Equipment Electric Wrie Rope Winch Lebus Grooved Drums
other name: mine winch/oil drilling winch
Hoist speed 0.95-1.27m/s
Rotate speed 720-960 r/min
Rope diameter 3-30mm
Sling type wire
Direction rotation left or right
Application hoist
Parameter can be designed
Application mining,oil drilling,or coal mine
Drum diameter 900mm
Drum width 600mm



The structural characteristics of electric winch

Each electric winch is composed of drive system, cable winding system, electrical control system, hook and other components. Drive system includes motor, reducer and other components. The wire rope winding system consists of wire rope, wire drum and other parts. Electrical control system includes control handle, control box, stroke control switch and other parts.

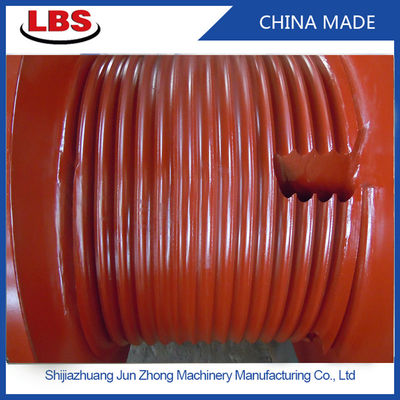

overview of the Lebus Grooved

LBS drum is a kind of groove for multi-layer winding of wire rope introduced from abroad. Because of this rope groove in the drum
Most of the circumferential section is kept parallel to the flange end face, only in a very small section and the flange end face intersection, so the rope groove must
However, there is a phenomenon of turning, it is named "folding rope groove" too.
Years of practical use has proved that this kind of drum with special rope groove structure can well solve the difficulty of multi-layer winding rope
The double folding cable groove system ensures that the multi-layer winding wire rope on the drum is completely smoothly drawn into and rolled out of the drum, and can be



Advantage Of The LBS Grroved

This system is still the most effective and perfect method to prolong the life of wire rope. Tests have shown that the use with Wire rope specifications match the rope groove, Lebus drum can prolong the life of wire rope more than 500%.
LBS rope groove makes the load evenly distributed between layers, and the practice proves that it greatly prolongs the life of wire rope. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.





Steel Q235 Construction Winch Machine 5 Ton Red For Coal Mine 0Steel Q235 Construction Winch Machine 5 Ton Red For Coal Mine 1Steel Q235 Construction Winch Machine 5 Ton Red For Coal Mine 2Steel Q235 Construction Winch Machine 5 Ton Red For Coal Mine 3Steel Q235 Construction Winch Machine 5 Ton Red For Coal Mine 4Steel Q235 Construction Winch Machine 5 Ton Red For Coal Mine 5
