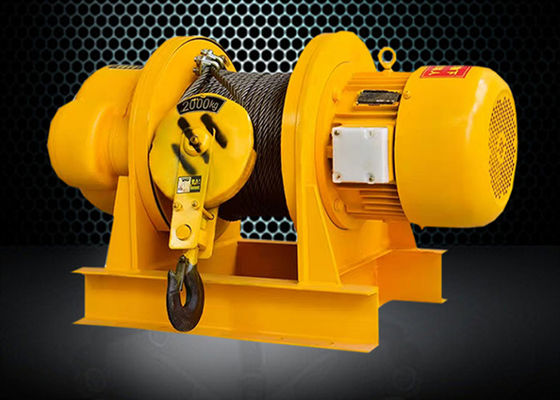

Steel Q235 Electric Rope Winch

Steel Q235 Electric Rope Winch
Steel Q235 Electric Rope Winch Steel Q235 Electric Rope Winch

Large Image :  Steel Q235 Electric Rope Winch

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSW-E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 30 to 40 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 500 Pieces/Sets Per Month
Detailed Product Description
Product Name: Electric Power Winch Material: Steel Q235
Small Order: Accepeted Produce Equipment: CNC Center
Application Range: Shipyard Oil Mining Hoist Speed: 0.95-1.27m/s
Rotate Speed: 720-960 R/min Rope Diameter: 3-30mm
Brand Name: LBS Power Source: Electric
High Light:

Steel Q235 Electric Rope Winch

,

960 r/min Electric Rope Winch

Steel Q235 Not Disorderly Wire Ropre Lebus Grooved Electric Power Winch





Product introduce :



Name Steel Q235 Not Disorderly Wire Ropre Lebus Grooved Electric Power Winch
other name: mine winch/oil drilling winch
Hoist speed 0.95-1.27m/s
Rotate speed 720-960 r/min
Rope diameter 3-30mm
Sling type wire
Direction rotation left or right
Application hoist
Parameter can be designed
Application mining,oil drilling,or coal mine
Drum diameter 900mm
Drum width 600mm



The structural characteristics of electric winch

Each electric winch is composed of drive system, cable winding system, electrical control system, hook and other components. Drive system includes motor, reducer and other components. The wire rope winding system consists of wire rope, wire drum and other parts. Electrical control system includes control handle, control box, stroke control switch and other parts.


Maintenance and maintenance of electric winch

1. All power supply must be completely cut off before maintenance of the winch begins. There should be no load in the system.

2. Before maintenance is permitted, users are advised to operate under the work permit system to ensure that all explosion hazards have been assessed by qualified persons.

3. Check the painting condition of the winch every month, and paint it to ensure that the metal is not exposed or corroded.

4. Make sure all shields are in place.

5. Check the operation of all safety devices, including the emergency stop system.

6. Check all electrical junction boxes to prevent loose connectors and water or condensate from entering.

7. Make sure all bolts and screw connections are secure.



Installation of electric winch

The most important note here is the state of the rope drum, which must be used to ensure that the lasso is evenly wound before the process begins. The installation process is as follows:

1. Plug in the remote control. Connect the distal end of the first plug-in winch.

2. Do not let the remote connection hang. If you are a driver, operate the remote control from the driver's seat and then make additional connections around the side mirrors of the car to make co-working easier.

3. Open the noose, use the remote control to open the noose a bit, and install it on the side of the electric winch.

Turn on the clutch. Please note that we have to open the hook later to open the clutch.

5. Hold the rope hook hand. Grabbing the hook with one hand pulls the rope out of the roller, so no matter how long the rope has been twisted, it doesn't reach the hook.

6. Pull the rope on the pivot and lock the clutch.

So the electric winch is installed.



Service content:

A: Pre-sales Service

1. Provide technical advisory services to assist customer in selection;
2. Provide customers with the necessary technical information, drawings, etc;

B: Sales Service

1. According to the relevant technical parameters, design drawings, or to provide customers with drawings of professional review, to provide the best solution and drawings.

2. Answers questions about specifications, performance, parameters, etc, and recommend the most appropriate solution.

3. Immediately after signing the contract, we make production planning for timely delivery.

C: After-sales Service

1. Provide technical advice during installation process;

2. In warranty period, if a quality-related problem occurs in normal use, please send a written description of the problem to us. We will respond within 24-48 hours.

3. Even if the warranty has expired, we are still glad to solve problems that are not due to improper use for you. All repairs will be billed at cost, and for long term, we supply spare parts at favorable price.



Steel Q235 Electric Rope Winch 0Steel Q235 Electric Rope Winch 1Steel Q235 Electric Rope Winch 2Steel Q235 Electric Rope Winch 3
