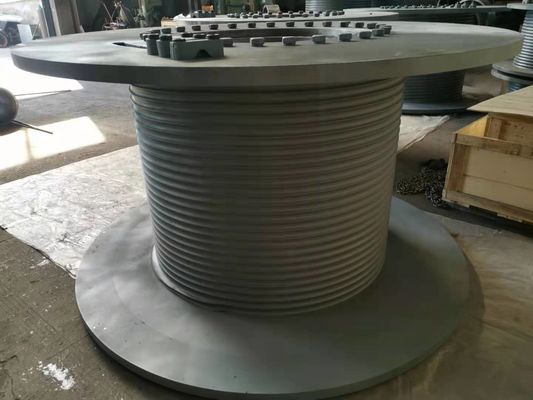

Grooved Rope Winch Drum

Grooved Rope Winch Drum
Grooved Rope Winch Drum Grooved Rope Winch Drum Grooved Rope Winch Drum Grooved Rope Winch Drum

Large Image :  Grooved Rope Winch Drum

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Product Name: 40mm Rope Winch Drum Material: Q355E
Layers: 6 Layers Rope Groove Type: Lebus Groove
Paint: Zinc Rich Primer Warranty Period: 1 Year
Capacity: 200KN Application: Hoisting
Specifications: Customizable Drum Core: Steel Plate Rolling
High Light:

Q355E Rope Winch Drum

,

Grooved Rope Winch Drum

Heavy Duty Low Temperature Material 40mm Wire Rope Winch Drum With Grooves





Product Description

Drum is one of the important parts of the crane,it is used to wind the wire rope in the lifting mechanism or traction mechanism, the driving force provided by the driving device to the wire rope, and the rotary movement of the driving device into the required linear movement.

The drum used on the crane is mostly cylindrical. At both ends of the drum, most of the plate support, a hole in the middle of the plate, there is a shaft in the middle, the shaft is divided into two kinds, one is through the long shaft, the other is a short shaft at both ends of the drum.

Drum according to the number of rope winding layer, divided into single layer winding and multi-layer winding two. The rope groove increases the contact area of the wire rope, ensures the orderly arrangement of the wire rope, prevents mutual friction, and improves the service life of the wire rope. Generally, the spiral rope groove is used for single-layer winding, and the LEbus rope groove is used for multi-layer winding.



Product Material

Alloy steel, cast steel, stainless steel,aluminum,all kinds of high-strength steel Q345B/D/E, Q420, Q460, 15CrMo, 20GrMo, 40GrMo, 42GrMo, etc



Product Advantage

LBS grooved wire rope winch drum, solved the problem of wire rope spooling.

Compared with ordinary cordless groove (smooth) drum and helical rope groove drum, LBS rope groove has obvious advantages in the multi-layer wire rope spooling, LBS special groove system makes the spooling of wire rope smooth, and the load of each layer evenly distributed, extend the service life of rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.



Technical Parameters

WIRE ROPE

40mm

RATED LOAD

200KN

LAYERS

6

ROPE LENGTH

250M

GROOVE TYPE

LEBUS GROOVE

GROOVE DIRECTION

LEFT-HAND

NUMBER OF GROOVES 18 MATERIAL Q355E
Reduction BUILT-IN TYPE WEIGHT 2140KG



Processing Technic

Grooved Rope Winch Drum 0



Product  Application

Winch drum is used in metallurgy, Marine engineering, mining, railway, military industry, aerospace, urban construction and other places.

1. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
3. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch.



Grooved Rope Winch Drum 1
