Product Details:
Payment & Shipping Terms:
|
| Product Name: | Oil Workover Rig Winch | Drum Quantity: | Single Or Double |
|---|---|---|---|
| Drum Design: | LBS Groove Or Spiral Groove | Material: | Carbon Stainless And Alloy Steels |
| Size: | Customization | Application Range: | Shipyard Oil Mining |
| Power Source: | Hydraulic | Capacity: | 500kn |
| Highlight: | 700mm Oil Rig Drawworks,340KN Oil Rig Drawworks |
||
Customization need more product technical parameters.

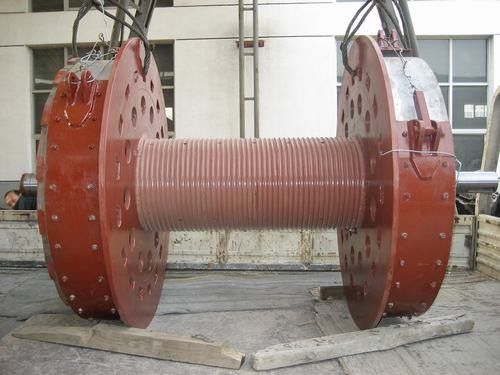

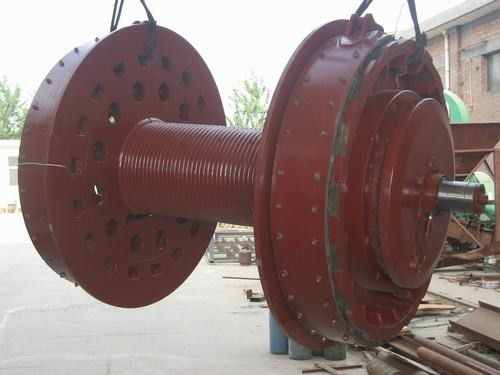

Product adoption LBS grooved drum, LBS groove system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.
| technical parameters | ||||||||
| input powerkW | JZ05 | JZ03 | JZ10-2 | JZ08-02 | JZ02-09 | JZ3-2 | JZ50D | |
| 150 | 180 | 400 | 450 | 600 | 735 | 1100 | ||
| master rotor | Maximum Fast line tension(second floor)kN | 80 | 120 | 180 | 210 | 280 | 275 | 340 |
| diameter of the tube body x lengthmm | Φ345×590 | Φ356×912 | Φ450×912 | Φ450×912 | Φ580×1012 | Φ640×1237 | Φ685×1138 | |
| brake drum (disc) diameter x length (thickness)mm | Φ810×210 | Φ970×260 | Φ1070×310 | Φ1070×310 | Φ1168×267 | Φ1168×265 | Φ1600×76 | |
| For wire rope diameter mm | 22 | 22 | 29 | 29 | 32 | 32 | 35 | |
| maximum speed of revolutionrpm | 450 | 450 | 450 | 450 | 450 | 370 | 370 | |
| brake drum cooling way | air cooling | air cooling | Forced circulating water cooling | Forced circulating water cooling | Forced circulating water cooling | Forced circulating water cooling | air cooling | |
Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment
Shijiazhuang Jun Zhong Machinery Maufacturing Co.,Ltd has been certified as “High & New-tech Enterprises of Hebei Province”, “benchmark enterprises”, “Well-known Trademark of China”, “Famous Trademark of Hebei Province”, and it has achieved many patents of state level and National Torch Plan Projects.
